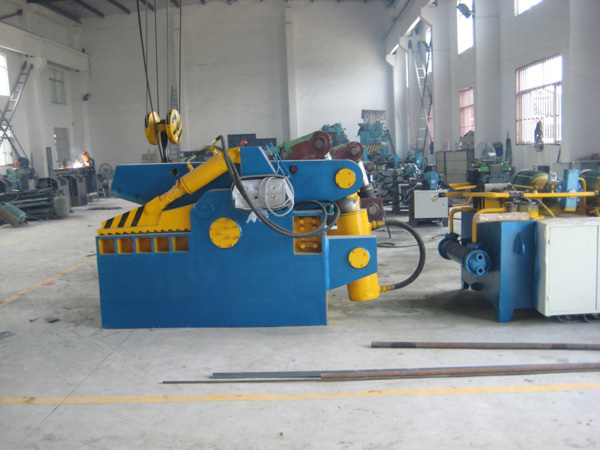

Q43 - 2500 Alligator ShearThe Q43-2500 alligator shear is used to get qualified furnace charge through cutting diverse scrap shaped steel section and structural metals at cold state like round steel, square steel, angle iron, I steel, steel plate and pipe, etc. It is commonly seen in the medium sized metal processing plant, steel works, scrap metal recycling site and so on. If there is no power at site, this product can be activated by diesel engine according to the demands of users. </p> |
No. | Parameters | Note | |||||
1 | Shear Cylinder | Type | YG250/160-540 | Quantity | 1pcs | ||
Nominal Thrust | 2500kN | Stroke | 540mm | ||||
2 | Clamping Cylinder | Type | YG125/90-347 | Quantity | 1pcs | ||
Nominal Thrust | 260kN | Stroke | 347mm | ||||
3 | Hydraulic System Working Pressure | 25MPa(Max. Pressure 27MPa) | |||||
4 | Oil Tank Capacity | 2160L | |||||
5 | Working Length of Blade | 1200mm | |||||
6 | Size of Major Applicable Materials | Common steel materials | |||||
7 | Cutting Frequency | 6-8times/min. | |||||
8 | Control Mode | Manually | |||||
9 | Max. Blade Opening | 450 | |||||
10 | Oil Pump | Model | 80YCY14-1B | Rated Pressure | 31.5MPa | ||
Flow Quantity | 80ml/r | Quantity | 2pcs | ||||
11 | Motor | Model | Y180M-4 | Rated Speed | 1460rpm | ||
Power | 18.5kw | Quantity | 2pcs | ||||
12 | Overall Dimension | 2650mm×1024mm×1880mm | |||||
13 | Overall Power | 18.5×2 + 9kw | |||||
14 | Overall Weight | 9.5ton |
