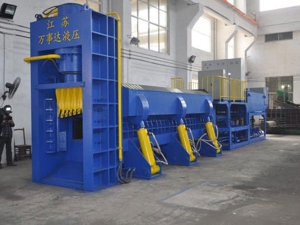

The WSD series scrap metal shear baler is fabricated by absorbing the advanced technology of similar products like the metal baler and the metal shear at home and abroad, combing the needs of customers and our actual operating situations.
-
- WSD-6300 Scrap Metal Shear Baler WSD-6300 Scrap Metal Shear Baler Our WSD-6300 scrap metal shear baler is designed for cold compaction of various thin metal materials with less than 4mm in thickness into rectangular bales at normal state, such as scrap steel, etc.
-
-
- WSD-4000C Scrap Metal Shear Baler WSD-4000C Scrap Metal Shear Baler This scrap metal shear baler is configured with the occlusive compacting box, suitable for processing the oversized waste metals and baling the scraped vehicles.
-
-
-
- WSD-4000G2 Scrap Metal Shear Baler WSD-4000G2 Scrap Metal Shear Baler Our WSD-4000G2 scrap metal shear baler is the perfect equipment configured in the medium and large scaled waste metal recycling site, metal smelting plant and other places.
-
Configured with hydraulic drive system, our machine can be operated under manual control or automatic control of PLC. The size of compacting box, bale size and baling mode can be designed specially to meet users' needs. Our machine can be equipped with motor or diesel engine as required. Additionally, we are able to help users to install and debug the machine and train the operators.
|
|
|
Application
This scrap metal shear baler is capable of cold pressing various thin metal materials with the thickness less than 3mm into rectangular bales at normal state, such as waste steel, scrap iron, wire steel, etc. Moreover, this machine will cut the rectangular bale into required length, including the steel section that is not longer than 5m. It makes the waste metal materials convenient for storage and transportation. This machine is also able to offer qualified furnace charge for metal smelting plant.
Features
1. Our scrap metal shear baler is designed reasonably with compact structure. It is small and lightweight. Aside from small inertia of movement and low noise, this machine offers stable movement, flexible operation, low energy consumption, simple installation, safe and reliable performance, etc.
2. Under the integrated hydraulic and electrical control, it becomes user friendly and easy for overload protection. <br />
3. This machine possesses a wide range of applications. It is able to work as processing equipment in metal recycling industry and smelting field.
Brief Introduction of Baling Process

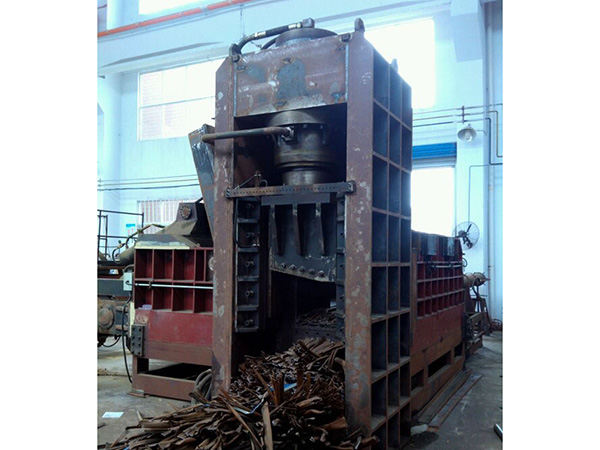

When the clamping cylinder of the scrap metal shear baler works, the clamping head is perceived as the locking door, users have to put the waste materials for baling into the compacting box manually or mechanically. With the automatic start button pressed by hand, the left and right clamping cylinders start to work separately to move the left and right clamping board to the position for closing the compacting box. The pushing cylinder will move forward to press the waste materials into bales, accomplishing the baling task.
Next, the clamping head will be opened. The bale ejector will push the bale at certain distance for cutting with shear cylinder. This action will be repeated without stop until the bale is about 600mm long left. Then the cutting job is finished. When the clamping head works, the bale ejector turns back to its original position. After the left and right clamping boards are opened again, the automatic baling and cutting process is done.
The scrap metal shear baler will wait for another manual press on automatic start button to continue the work cycle. If it doesn't need to bale and cut any more, users can push the left 600mm bale out of the equipment by hand.
